MOZA R3 Review — Compact Direct Drive Power for Console and PC
If you’ve ever wondered whether you can get a true direct drive experience on Xbox without spending a fortune, the MOZA R3 might just be the answer.
It’s MOZA’s smallest and most affordable wheelbase — a sleek, compact unit designed to bring premium build quality to a wider audience.
Let’s take a closer look at what makes the R3 so interesting… and where it still falls short.

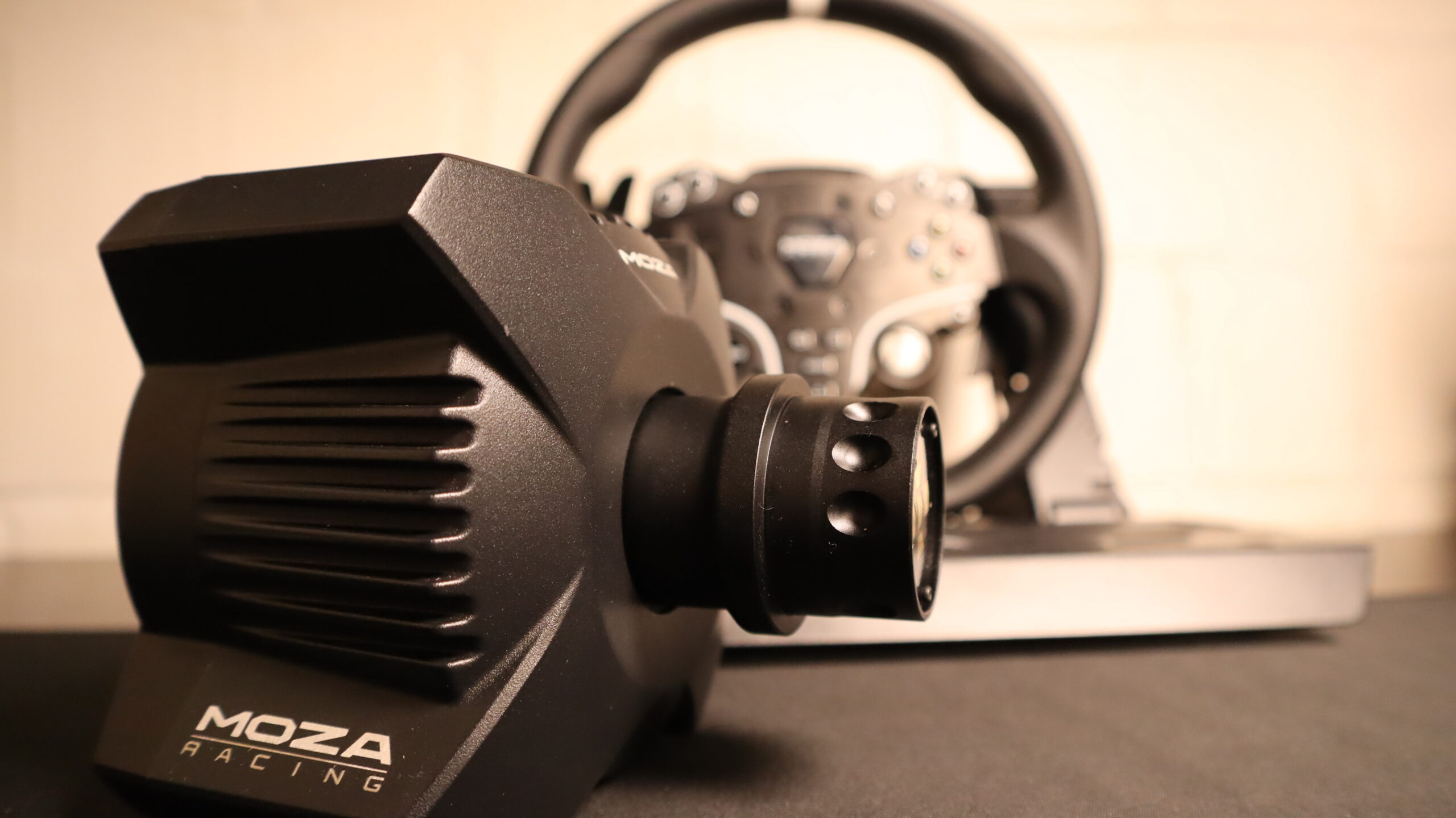

📦 Design & Build Quality
When I first took the MOZA R3 out of the box, I was genuinely amazed by how compact it is.
It’s probably the most compact wheelbase I’ve ever tested.
The casing is made from aluminum, finished in MOZA’s signature matte black with subtle engraved logos. The design is modern, neutral, and solid — it looks and feels premium.

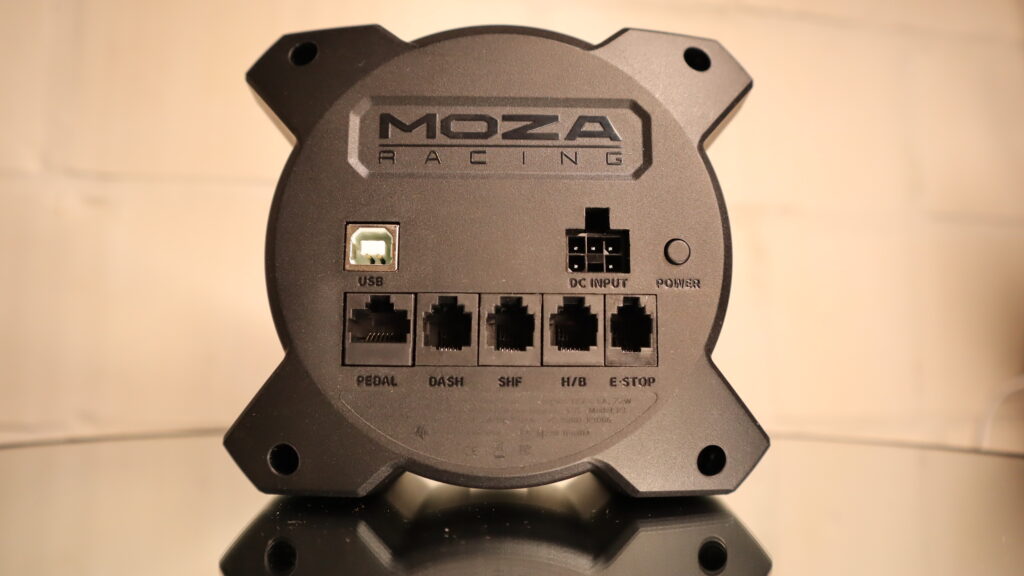

🔌 Connections & Mounting
- Power: 60W PSU brick
- Connection: USB-B to USB-A (PC or Xbox)
- Peripherals: Up to 5 extra devices via RJ connectors
- Mounting: Either bolted directly to your rig or via the included desk clamp
And of course, MOZA’s quick-release system is front and center — sturdy, smooth, and secure as always.

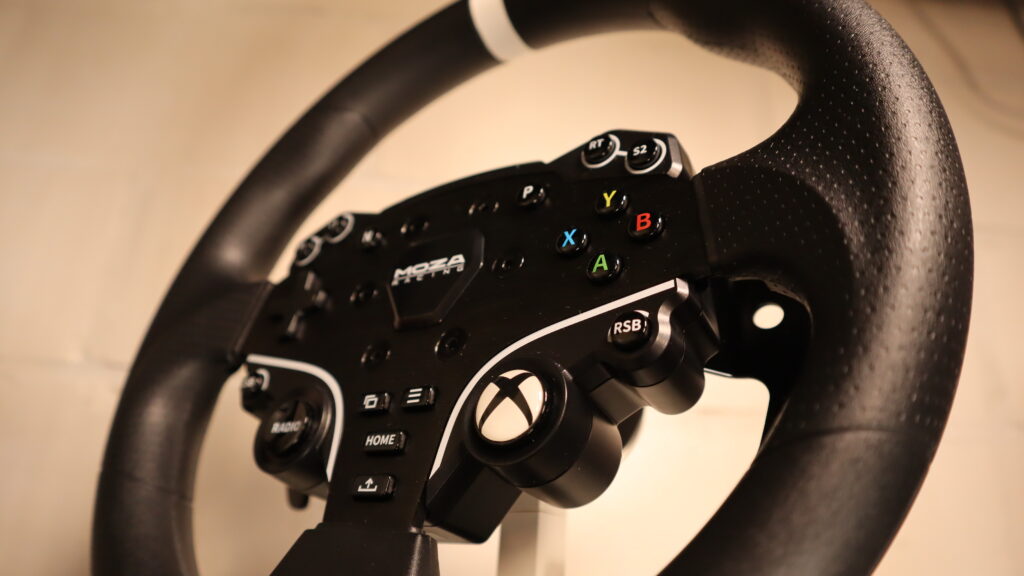

🕹️ The Steering Wheel
The R3 wheel measures around 28 cm in diameter and has a D-shape design.
- 22 programmable buttons
- Aluminum frame with polyurethane coating
- Bright, built-in rev counter at the top
- Metal paddle shifters with a spring mechanism
The shifters are 11 cm long and produce a satisfying click when pressed. They’re not magnetic, but precise and comfortable.
The buttons feel similar to console controllers — soft and quiet, with printed, clear-coated labels that should resist wear over time.
Overall, it’s not a luxury wheel, but a very solid entry-level one that feels better than most competitors at this price point.

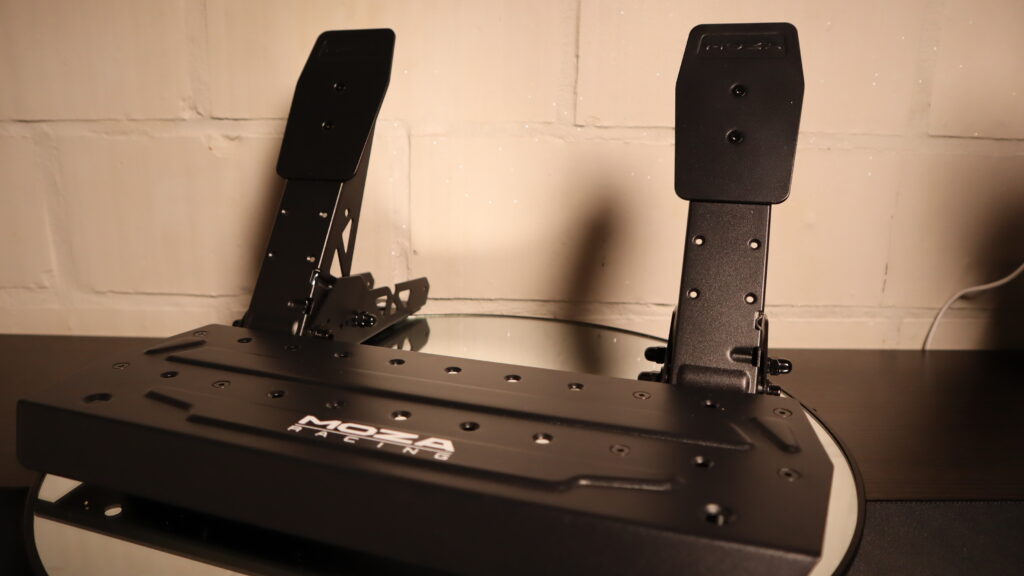

🦶 Pedals — Simple but Solid
The included pedals are made entirely from steel, including the pedal faces.
They come as a two-pedal setup (accelerator + brake), with:
- Modular mounting options
- Adjustable spacing and angle
- Up to 2 cm of height adjustability per pedal face
They connect via RJ cable to the wheelbase — not via USB, which means you can’t use them standalone on PC out of the box.
🧠 However, the pedals use hall sensors for input detection — so even though they’re basic, they deliver accurate and consistent performance.
⚡ Force Feedback & Driving Experience
The MOZA R3 produces 3.9 Nm of torque — the lowest of all MOZA direct drive bases.
It’s roughly comparable in power to a Thrustmaster T300, but the R3 uses direct drive instead of belts, which makes it feel smoother and faster in response.
So how does it feel in-game?
🎮 Assetto Corsa Competizione Test Drive
- You clearly feel the road details, curbs, and slip.
- But when heavy lateral forces come into play, the R3 begins to flatten out the sensations.
- The force feedback lacks buildup and depth — everything feels a little too even.
This doesn’t make it bad, just underpowered for advanced sim racers.
If you’ve driven a T300 or G29 before, the R3 may not feel like a big step up in strength — though it is smoother and more refined.
🧩 Software — MOZA Pithouse
MOZA’s Pithouse software continues to impress.
Clean layout, intuitive interface, and built-in presets for different vehicle types.
For beginners, these presets make setup super simple — no need to scour the internet for the right FFB values.
You can jump in and start driving with well-balanced, pre-tuned profiles.
🧠 Ecosystem & Compatibility
The MOZA R3 package is compatible with PC and Xbox, and it was MOZA’s first Xbox-compatible bundle.
Interestingly, the compatibility doesn’t reside in the wheelbase — it’s actually in the steering wheel.
That means:
- You can mount the R3 wheel on an R5 base and it’ll still work.
- There’s no PlayStation compatibility across MOZA’s lineup.
MOZA’s ecosystem, however, is one of the best available:
- A wide range of wheels (from budget to premium)
- Handbrake, shifter, displays, and multi-function stalks
- Excellent modular upgrade options
⚠️ Important Note for Xbox Users:
Pedals must connect to the wheelbase (not USB), so you can’t use CRP pedals with the R3 on Xbox.
On PC, that’s not an issue — just connect them via USB.
Also, the MOZA Trucking Wheel shouldn’t be used on the R3 — it’s simply too heavy for the motor.
You’ll want at least an R5, ideally an R9, for that.
⚠️ Known Issues
Some users have reported wheelbase disconnections, especially on Xbox.
It’s unclear whether it’s due to firmware, cables, or hardware faults — and I haven’t personally experienced it.
Still, it’s worth researching before you buy, just to be sure the issue has been fully resolved.
💰 Pricing & Value
| Version | Platform | Price (€ / USD) |
|---|---|---|
| MOZA R3 Bundle | PC + Xbox | €400 / $359 |
| MOZA R3 (PC only) | PC | €329 |
| Fanatec CSL DD 5 (Xbox bundle) | PC + Xbox | ~€500 |
Considering its quality and direct drive nature, the R3 offers incredible value.
For newcomers to sim racing, it’s one of the best entry points into direct drive technology.
🏁 Conclusion — Small, Smooth, but Slightly Soft
So, does the MOZA R3 live up to the hype?
✅ Yes — for beginners and casual racers.
❌ Not quite — for experienced sim racers craving torque and depth.
✅ The Good
- Compact and stylish design
- Excellent build quality
- Smooth, detailed force feedback
- Superb ecosystem and software
- Affordable direct drive entry
⚠️ The Not-So-Good
- Underpowered compared to competitors
- Pedals lack progressive brake feel
- Xbox pedal connection limitations
💡 In short:
If this is your first wheelbase, it’s a brilliant start.
If you’re coming from a T300 or G29, you might want to look one step higher — perhaps the MOZA R5 or R9.
Either way, the R3 proves that MOZA isn’t afraid to challenge the big brands — pushing the envelope for affordable, console-friendly direct drive setups.
